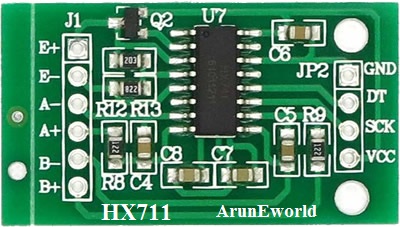

Embedded Sensor Hx711

The HX711 is a highly popular 24-bit Analog-to-Digital Converter (ADC) designed specifically for reading load cells and strain gauges, making it a core component in digital weighing systems. It integrates a precision amplifier and ADC, allowing it to measure very small voltage differences produced by load cells with high accuracy. Its low-cost, compact design, and ease of interfacing with microcontrollers like Arduino, ESP8266, and ESP32 make it ideal for embedded sensor applications.

Features of Embedded Sensor Hx711:

HX711 offers two differential input channels, Channel A and Channel B. Channel A supports a programmable gain of 128 or 64, suitable for precise load cell measurements, while Channel B provides a fixed gain of 32. It operates on a single supply voltage of 2.6–5.5V, consumes very little power, and provides a clean, low-noise output ideal for reading millivolt-level signals from load cells.

Working Principle:

Typically, a load cell has four wires: Excitation+ (E+), Excitation- (E-), Signal+ (A+), and Signal- (A-). The excitation wires power the load cell, while the signal wires carry the small voltage difference proportional to the weight. These wires connect to the corresponding HX711 pins, which then communicate the digitized weight to the MCU.

Applications:

HX711 modules are widely used in digital scales, industrial weighing systems, food processing machines, and IoT-enabled smart scales. Its high resolution and stability make it suitable for precise weight measurement and monitoring in embedded systems.

Integration:

Using libraries like HX711.h in Arduino or ESP8266/ESP32 environments, developers can quickly read calibrated weight values, apply scaling,

Can implement features such as tare, average readings, and continuous monitoring.

Overall, HX711 is an essential embedded sensor module for any project requiring accurate, low-cost weight measurement with easy microcontroller interfacing.
