Embedded Interface – PCF8574 and PCF8574A I/O Expender

In this article we are discussing Embedded Interface – PCF8574 and PCF8574A I/O Expender.

The PCF8574 device provides general-purpose remote I/O expansion for most micro controllers
families by way of the I2C interface [serial clock(SCL), serial data (SDA)]. 8-bit 2.5- to 5.5-V I2C/SMBus I/O expander with interrupt

The device features an 8-bit quasi-bidirectional I/O port (P0–P7), including latched outputs with high current drive capability for directly driving LEDs. Each quasi-bidirectional I/O can be used as an input or output without the use of a data-direction control signal. At power on, the I/Os are high. In this mode,
only a current source to VCC is active.

Feature of PCF8574

  • Two-wire i2c Bus Interface
  • 8-Bit Parallel Bus Ex-panders
  • Operating Voltage VCC -2.5v to 6v
  • Up to 8 Addressed by three hardware-address pins
  • Low standby current consumption 10mA maximum
  • LED Driving (Latched output with high-current drive capability)

Typical Applications

  • Fan Control
  •  LED Driver
  • Cost-effective method to monitor several peripheral signals
  • Temperature Sensor Monitoring
  • 8-Bit Bidirectional  expansion

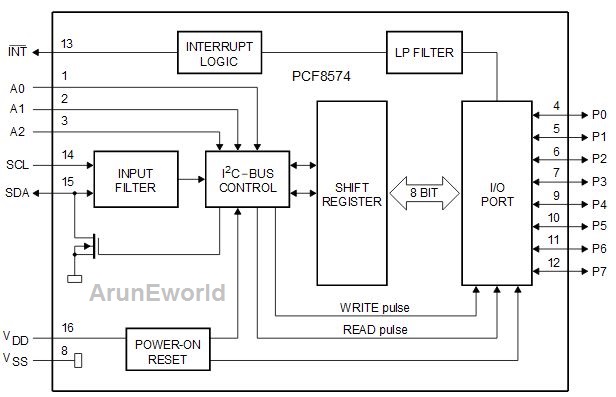

PCF8574 I/O Expender Block Diagram

ArunEworld Embedded Interface PCF8574 BlockDiagram
PCF8574 Block Diagram

Functional Description of PCF8574

ArunEworld Embedded Interface PCF8574 BlockDiagram
PCF8574 Functional Block Diagram

PCF8574 Applications

Multiple I/O Expender

ArunEworld Embedded Interface PCF8574 and PCF8574A Application Multiple
PCF8574 and PCF8574A Application Multiple

Bi-Directional PCF8574 I/O Expender

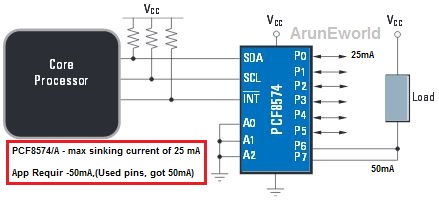

High Current-Drive Load of PCF8574 PCF8574A I/O Expender

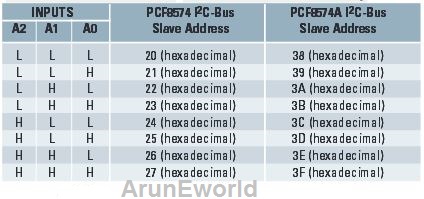

Difference b/w PCF8574 and PCF8574A ?

The main difference between the these ICs is the i2c address

  • PCF8574 Address range (0x20 to 0x27 – up-to 8 device)

  • PCF8574A Address range (0x38 to 0x3F – up-to 8 device)

 Difference B/W Ti-PCF8574 and Philips PCF8574?

  • Package 20 Pin TVSOP (23% smaller than 20 pin TSSOP)
  • Package 20 Pin QFN Package (62% smaller than 20-pin TSSOP)
